Authorized development, SF6 gas-insulated RMU switchgear, intelligent grid routing assets, customized multi-capacity LFP systems, and smart micro-mobility engineering.
The company specializes in scientific research, engineering design, manufacturing, intelligent operation, and global maintenance services for energy distribution equipment and green climate solutions worldwide.
We offer fully integrated technological solutions for diverse operating environments: CKFL series SF6 Gas-Insulated Switchgear (GIS), digital ring main units, heavy-duty power transformers, modular BESS energy storage systems, clean refrigerant heat pumps, micro wind turbine generators, and specialized Super Warrior electric cargo transport platforms.
Installation and commissioning of automatic photovoltaic tracking systems in Ulaanbaatar, Mongolia.

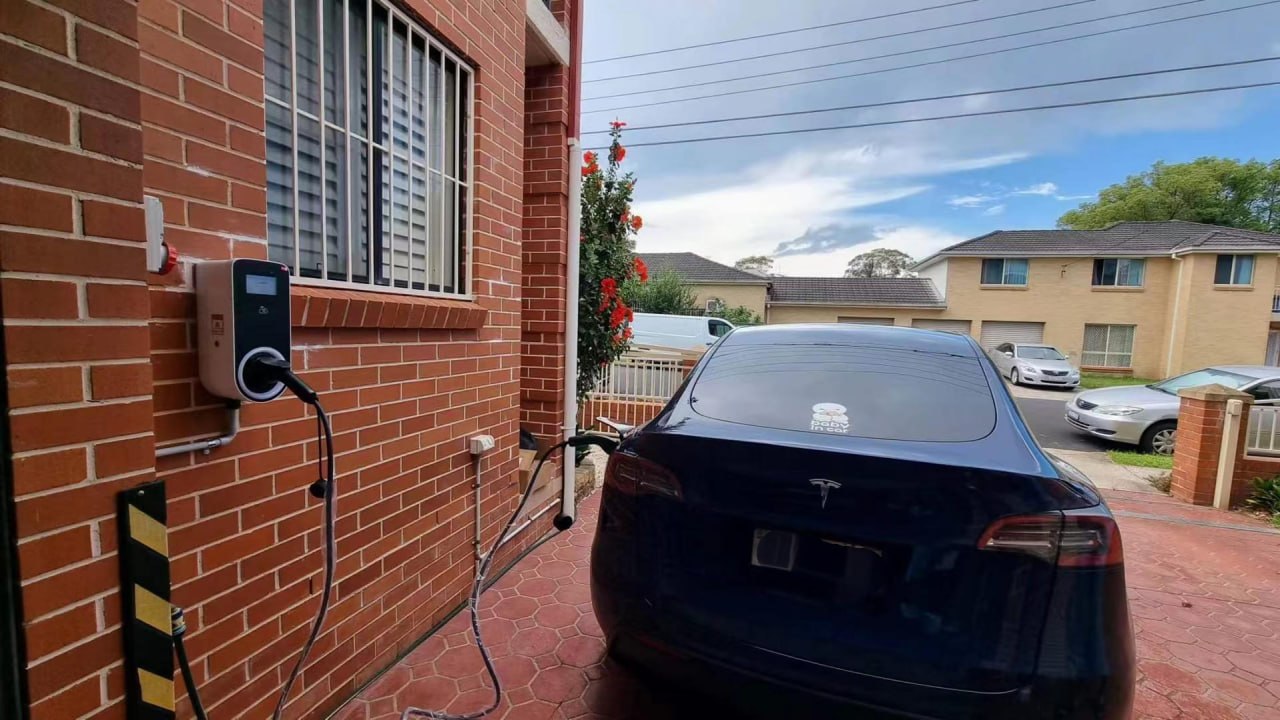

Successful completion of 22 kW MOUSE AC home charging station integration project in a Slovak eco-residential district.
Showcase of SF6 RMU CKFL-12/24 gas-insulated switchgear units and rapid EV charging stations for grid infrastructure networks.

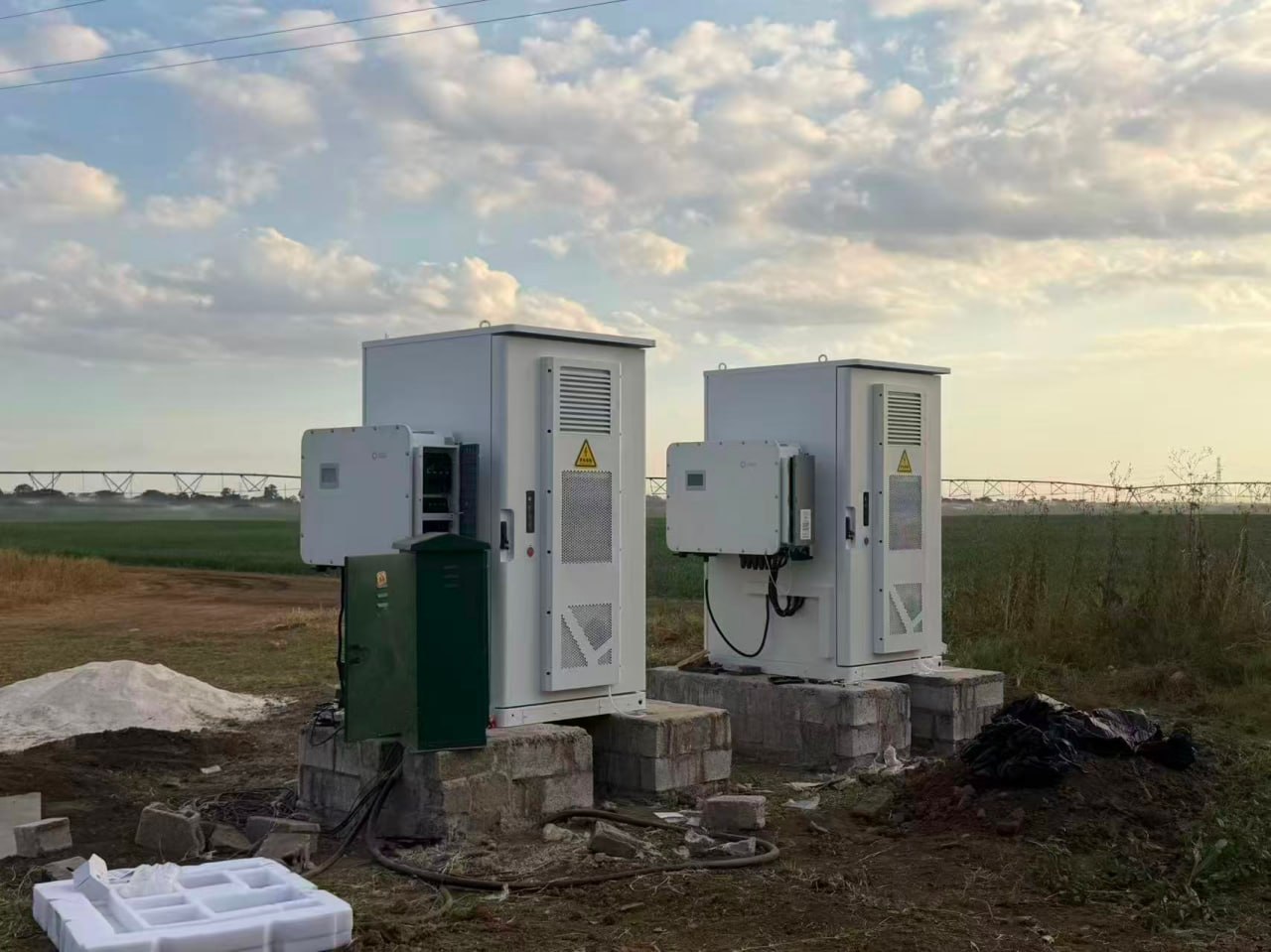

Energy integration of solar PV arrays and BESS buffer storage to stabilize local power supplies for Chilean agricultural farms.

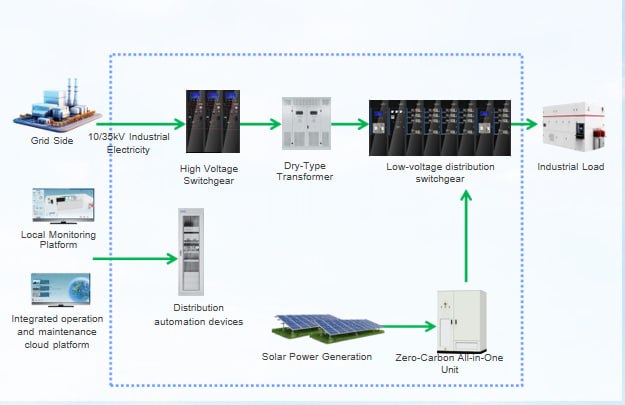

An equipment ecosystem engineered for building autonomous, zero-carbon power distribution networks.
SF6 Gas-Insulated Switchgear RMU (CKFL Series, IP67), KYN28A/KYN61 switchboards, and SCB dry-type transformers up to 35 kV.
High-efficiency air source heat pumps utilizing eco-friendly R32 and R290 refrigerants with capacity up to 16 kW.
Smart MOUSE AC charging stations and ultra-fast DC power charging cabinets up to 240 kW.
Heavy-duty commercial cargo electric tricycles and motorcycles featuring NFC smart access control.
Premium flexible photovoltaic solar panels with textured ETFE coating rated at 400 W.
Industrial-grade 18650 and 21700 lithium battery cells in high-capacity and high-discharge rate variants.
Integrated lithium battery packs coupled with advanced Power Conversion Systems (PCS).
Modular outdoor liquid-cooled BESS energy storage cabinets with capacity up to 500 kWh.
SH-W1000 vertical-axis wind turbines with magnetic levitation and low cut-in wind speed from 1.5 m/s.
Comprehensive line of SF6 Gas-Insulated Switchgear (GIS) Ring Main Units, high-voltage switchboards, and power transformers certified to international IEC standards.
High-intelligence CKFL series SF6 gas-insulated Ring Main Units featuring hermetically sealed stainless steel tanks, designed for safe power reception and distribution in harsh environmental conditions and urban power grids.
Select configuration module (Module C - Load Switch, Module F - Combination, Module V - Vacuum Circuit Breaker)

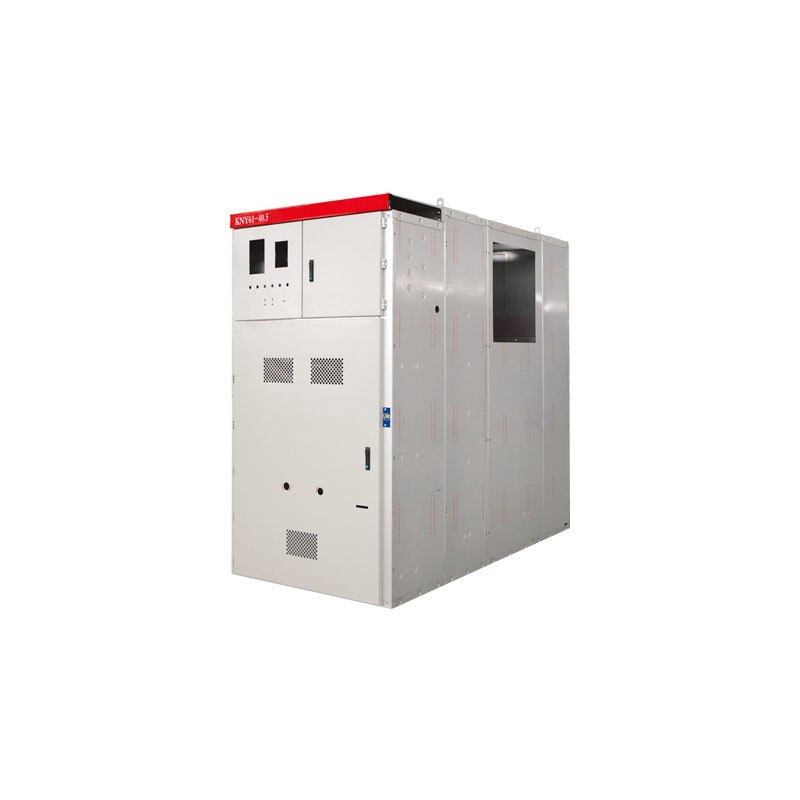

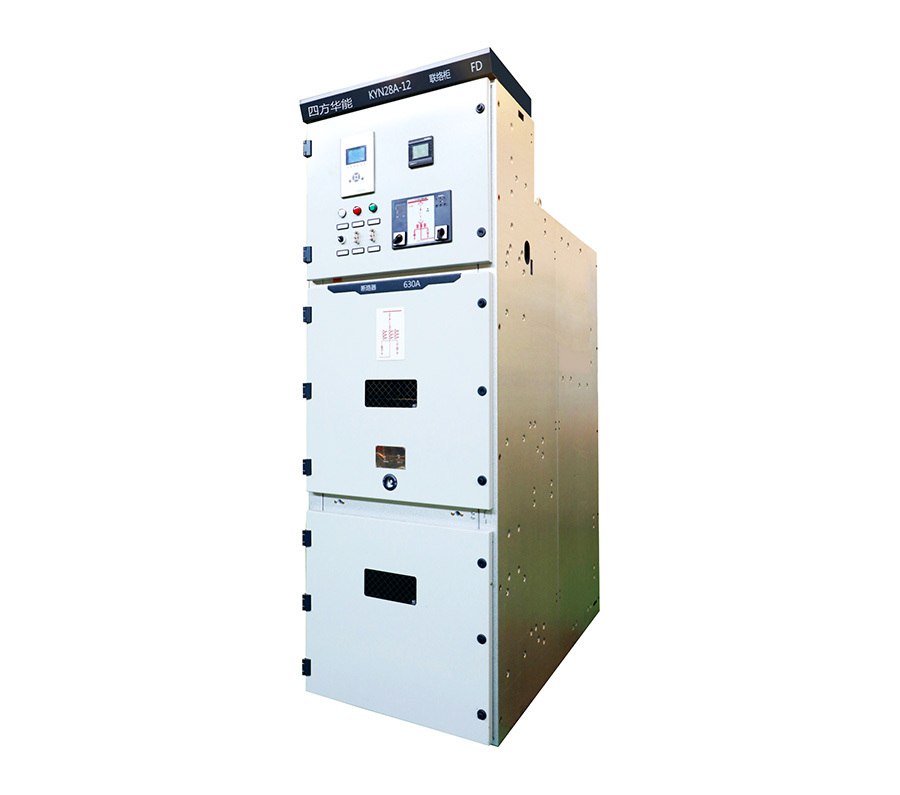

Armored air-insulated metal-clad switchgear equipped with reliable vacuum circuit breakers and mechanical interlocks.
Designed for receiving and distributing 50 Hz three-phase AC power. Built with a robust bolted frame structure.

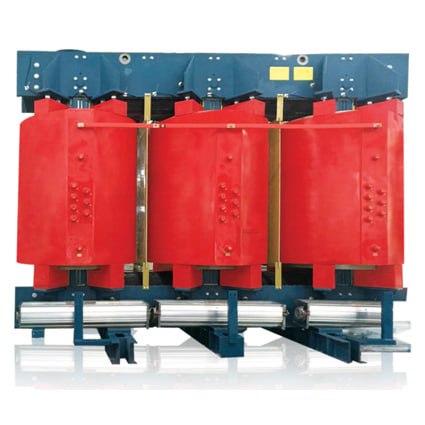

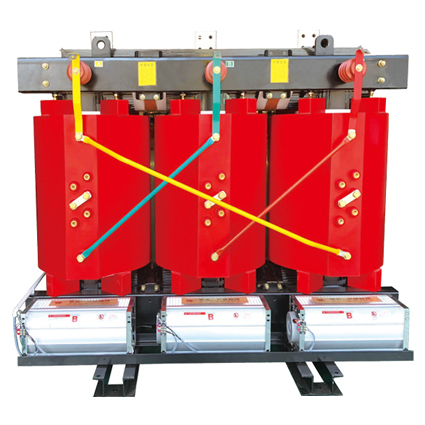

Cast resin dry-type power transformer. Optimal solution for indoor substations in residential areas, airports, and commercial centers.
Engineered to connect utility-scale solar and wind farms with high-capacity BESS storage installations.

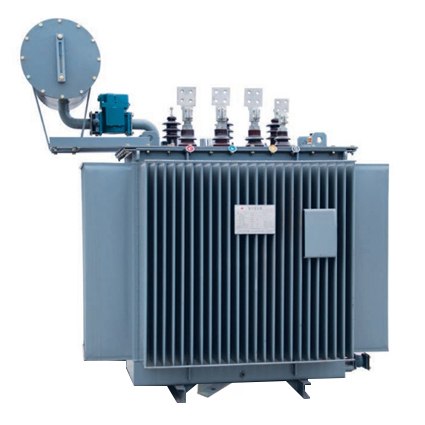

Hermetically sealed corrugated oil-immersed transformers offering significant reduction in no-load power losses.

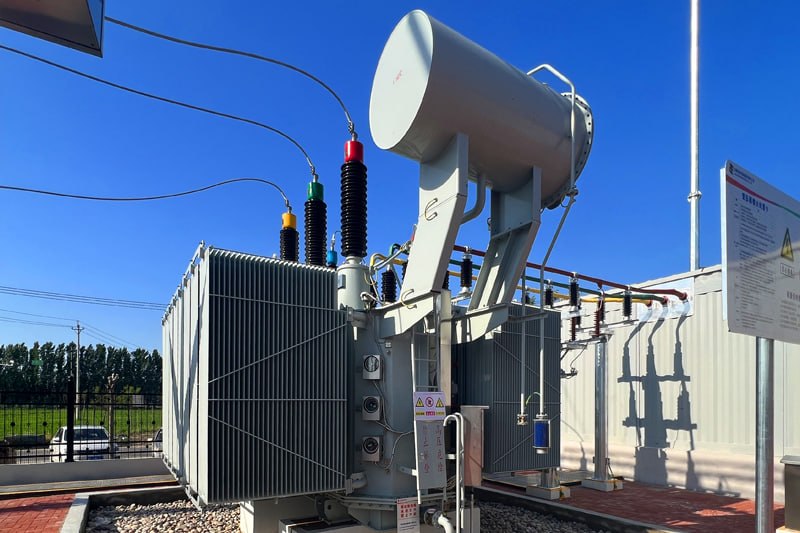

High-capacity outdoor power substation plant designed to interface regional power generation facilities with the utility grid.
This is an integrated air to water heat pump system which is a one-stop solution for space heating, space cooling and domestic hot water. The outdoor heat pump system extracts heat from the outdoor air and transfers this heat through refrigerant piping to the plate heat exchanger in the hydronic system. The heated water in the hydronic system circulates to low temperature heat emitters (floor heating loops or low temperature radiators) to provide space heating, and to the domestic hot water tank to provide domestic hot water. The 4-way valve in the outdoor unit can reverse the refrigerant cycle so that the hydronic system can provide chilled water for cooling using fan coil units. The heating capacity of heat pumps decreases with ambient temperature dropping. J Thermal Mono can be equipped with a backup electric heater to provide additional heating capacity for use during extremely cold weather when the heat pump capacity is insufficient. The backup electric heater also serves as a backup in case of heat pump downtime or maintenance.
Panasonic DC Inverter compressor delivering reliable heating operation down to -25Ā°C ambient temperature. Energy class A+++.
Eco-friendly natural refrigerant with ultra-low GWP=3 and high hot water outlet supply up to 75Ā°C.
Food-grade stainless steel buffer and storage tanks featuring high-density polyurethane thermal insulation.
The operating principle of the outdoor monobloc unit is based on absorbing ambient aerothermal energy and transferring it into the hydronic heating loop with maximum COP efficiency.
Automatic Anti-Freeze Protection: During extreme sub-zero conditions, the system intelligently cycles the auxiliary heating element and recirculation pump to ensure constant fluid circulation and prevent piping freeze-up in harsh climates.
Select the required compressor power supply mode to view detailed catalog performance parameters.

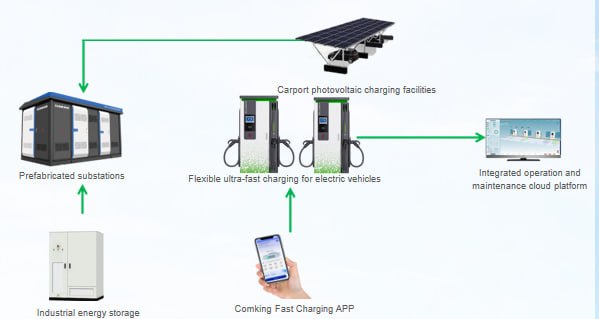

Smart AC charging piles and ultra-fast DC power cabinets engineered for public stations and commercial fleets.

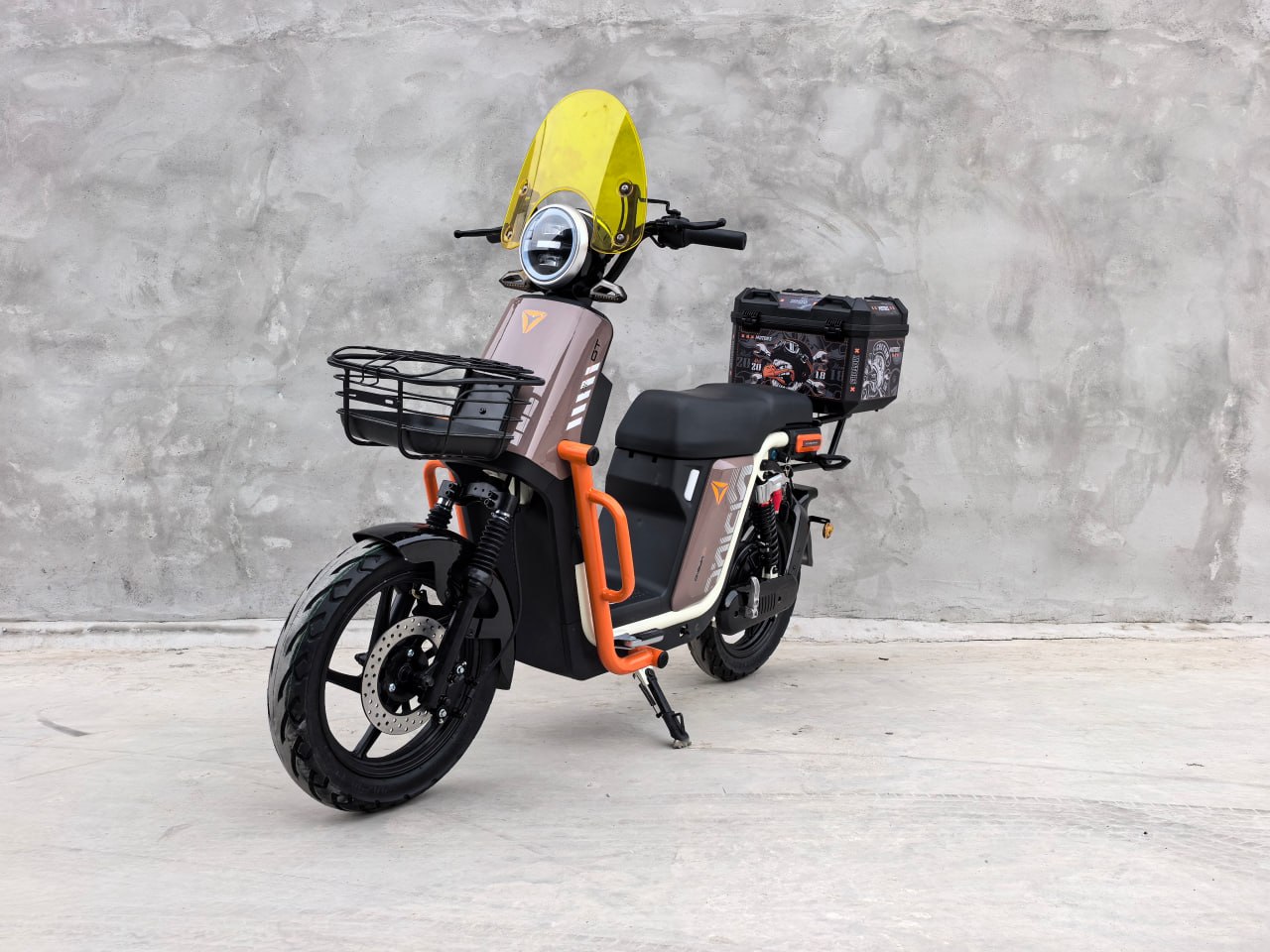

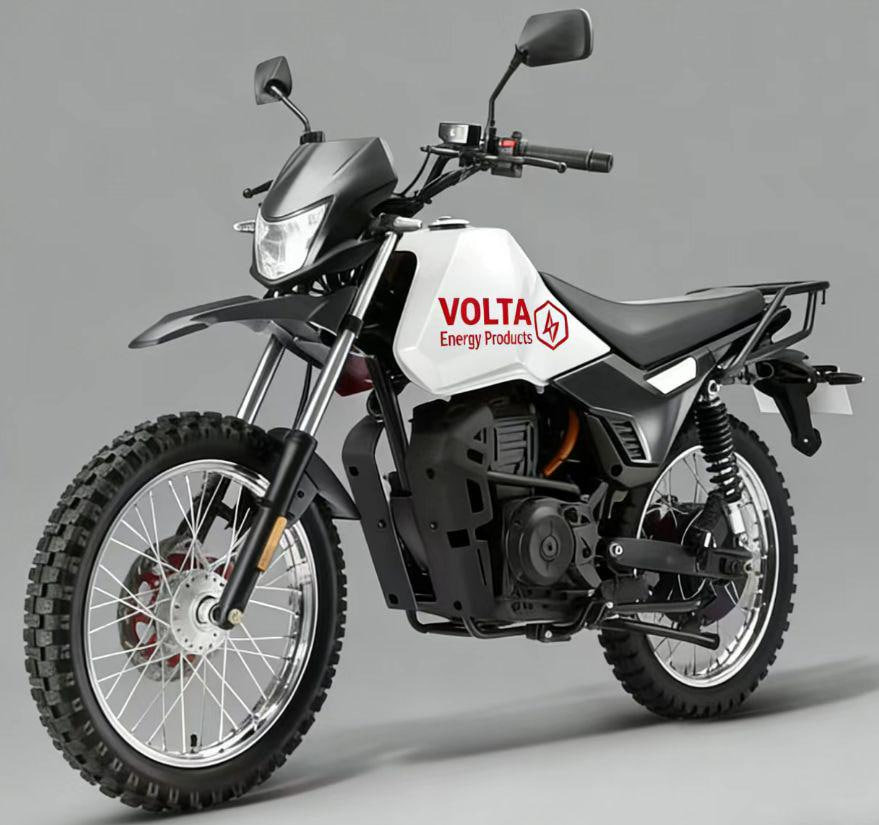

Commercial cargo and high-performance electric platforms engineered for zero-emission last-mile logistics.
Compare your current gasoline fleet operating expenses with the net operational savings achieved by transitioning to the electric cargo fleet.
$1,080
$960
Textured frosted ETFE surface lamination minimizes anti-reflective glare and maximizes diffuse light capture at sharp incident angles, securing power generation even on overcast winter days.
Ultra-slim 2.5 mm profile allows the module to flex smoothly over curved roofs of yachts, RVs, and arched structures without stressing internal silicon cells.
| Peak Rated Power (Pm) | 400 W |
| Open Circuit Voltage (Voc) | 53.76 V |
| Max Power Voltage (Vmp) | 44.80 V |
| Short Circuit Current (Isc) | 9.45 A |
| Bending Radius Capacity | Safe up to 15 Degrees |
| Dimensions (L × W × H) | 1120 × 1777 × 2.5 mm |
Certified industrial battery cells for building high-density energy storage and high-rate power packs.
Filter cells by form factor and discharge rate capabilities.
| Voltage: | 3.7 V Nominal |
| Resistance: | ≤ 50 mĪ© (with PTC) |
| Discharge: | 2.0 A Standard (1C) |
| Voltage: | 3.7 V Nominal |
| Resistance: | ≤ 50 mĪ© |
| Discharge: | 2.2 A Standard (1C) |
| Voltage: | 3.7 V Nominal |
| Resistance: | ≤ 20 mĪ© (No PTC) |
| Discharge: | 20.0 A Continuous (10C) |
| Voltage: | 3.7 V Nominal |
| Resistance: | ≤ 20 mĪ© |
| Discharge: | 20.0 A Continuous (8C) |
| Voltage: | 3.7 V Nominal |
| Resistance: | ≤ 20 mĪ© |
| Discharge: | 12.0 A Continuous (3C) |
| Voltage: | 3.7 V Nominal |
| Resistance: | ≤ 20 mĪ© |
| Discharge: | 15.0 A Continuous (3C) |
Our Battery & PCS (Power Conversion System) solutions integrate advanced lithium battery packs with bidirectional grid-tie inverters for dynamic frequency regulation, reactive power compensation, and seamless microsecond backup switching.
Equipped with intelligent cell-level BMS monitoring, supporting both islanded Off-Grid operation and synchronized On-Grid utility connections.
Integrated outdoor BESS containers with intelligent liquid cooling for peak shaving and industrial microgrid support.
HUAPOWER outdoor climate-controlled BESS cabinets are engineered for high-durability prismatic LFP cells. Systems include integrated PCS inverters, automated clean-agent fire suppression (Novec/FM200), and electrolyte leak detection sensors.
| Model Parameters | HP-BESS-100K | HP-BESS-200K | HP-BESS-500K |
|---|---|---|---|
| Cell Chemistry | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) |
| System Energy Capacity | 100 kWh | 200 kWh | 500 kWh |
| Inverter Power Output | 50 kW | 100 kW | 250 kW |
| System Dimensions | 1100 × 1100 × 2100 mm | 1300 × 1300 × 2250 mm | Prefabricated Containers |
The SH-W1000 vertical-axis wind turbine is equipped with a direct-drive 3-phase permanent magnet generator. Innovative magnetic levitation reduces startup torque to just 0.2ā0.3 NĀ·m, enabling smooth rotation from wind speeds as low as 1.5 m/s.
Dual-layer FRP (Fiber Reinforced Polymer) blades dampen structural vibration and ensure reliable power output across wide wind velocity regimes, fully complying with IEC 60034-1 standards.
| Model Name | SH-W1000 Base |
| Rotor Diameter | 0.66 m |
| Blade Height | 2.0 m |
| Net Weight | 40 kg |
| Rated Peak Power | 1000 W (Peak 1050W) |
| Start-up Wind Speed | 1.5 m/s |
| Survival Wind Limit | 45 m/s (Storm Class) |
| Output Voltage | 24V / 48V / 220V Auto |
Deployment of our technical lines across diverse infrastructure scenarios.
Turnkey engineering design specifications for rapid deployment and modular scalability.
Proven field performance of our equipment in power networks worldwide.
Get technical manuals, certifications, and high-resolution CAD schematics.
Complete engineering guide covering Module C, Module F, and Module V configurations.
Technical parameters and impulse insulation withstand tables for 10kV to 35kV range.
Container layout, fire suppression protocols, and MODBUS telemetry guide.
Contact our engineering support team for custom power equipment configurations and system sizing.
